Test report 7167
The approval
A test mark „DLG-APPROVED for individual criteria“ is awarded for agricultural products which have successfully fulfilled a scope-reduced usability testing conducted by DLG according to independent and recognised evaluation criteria. The test is intended to highlight particular innovations and key criteria of the test object. The test may contain criteria from the DLG test scope for overall tests, or focus on other value-determining characteristics and properties of the test subject. The minimum requirements, test conditions and procedures as well as the evaluation bases of the test results will be specified in consultation with an expert group of DLG. They correspond to the recognised rules of technology, as well as scientific and agricultural knowledge and requirements. The successful testing is concluded with the publication of a test report, as well as the awarding of the test mark which is valid for five years from the date of awarding.
The test carried out on a 12 m FLIEGL SKATE 120 trailing shoe applicator with two FLIEGL auger distributors consisted of the following two modules from the DLG test framework on slurry application: “Functionality and quality of work” and “Handling, ease of operation, service and maintenance”. The DLG test module “Functionality and quality of work” measures the quality of distribution across rows (lateral distribution) on level ground and the spreading performance at application start (V pattern). This test module is carried out on the test stand and simulates the application of two types of slurry at two different rates. In the second test module “Handling, ease of operation, service and maintenance”, the test persons execute typical machine functions and frequent service and maintenance jobs. These operations are timed and described in terms of ease and tools required.
Other criteria were not tested.
Assessment in brief
In both test modules, the FLIEGL SKATE 120 trailing shoe applicator with FLIEGL auger distributors met all the criteria that are laid down in the DLG test framework.
DLG test module “Functionality and quality of work”
In all cross distribution tests, the machine achieved the best DLG score (+ +) *. At application start, it never took longer than 2.3 seconds until all outlets were supplied with slurry. This prompt delivery suggests that the full spreading width is achieved very quickly rather than a prolonged V pattern.
DLG test module “Handling, ease of operation, service and maintenance”
In this DLG test module, several experienced operators carried out typical machine functions and repetitive service jobs while the test engineers timed these operations and described the ease at which these functions were carried out. The system can be classified as very user-friendly. Particularly noteworthy details are the small number of grease nipples and the excellent access to all service points.
Table 1: Overview of results
DLG quality profile | Score* |
Functionality and quality of work | ✔ |
Handling, ease of operation, service and maintenance | ✔ |
* Evaluation range: Requirements fulfilled (✔ ) Requirements not fulfilled (X)
The product
Description and technical data
Trailing shoe applicato

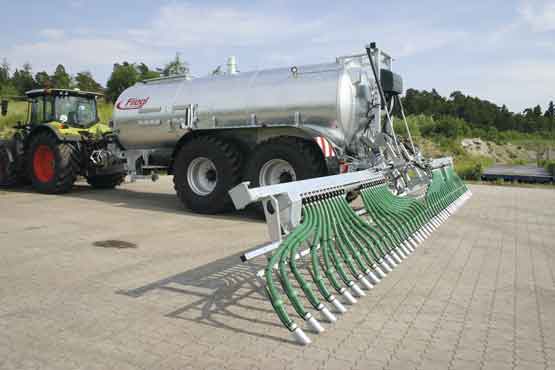

The FLIEGL SKATE trailing shoe applicator is available in various working widths: 6 m, 7.5 m, 9 m, 12 m, 15 m, 18 m, 21 m and 24 m. The DLG test was carried out using the 12 m boom (FLIEGL SKATE 120). The hoses on this version are spaced at 25 cm.

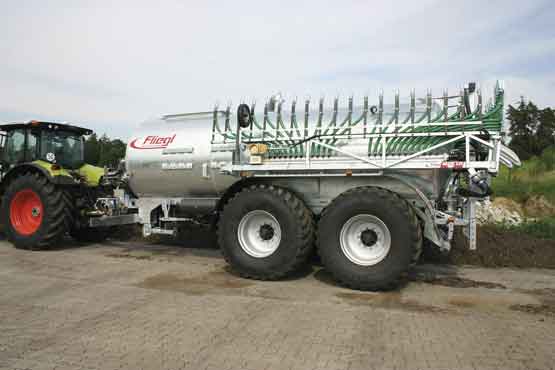

The applicator is attached either directly to the tank or to a 4-point linkage. Folded into transport position, it measures 2.6 m.
The boom has an integral catch mechanism, a passive anti-yaw damping system in the central frame and two jockey wheels. The shoes are formed to long spouts.
Section control is either mechanical or hydraulic. On the headland, the booms are raised and angled up to the rear preventing slurry leaking from the shoes.
The distributor
Each of the two FLIEGL auger distributors inside the 12 m boom distribute the slurry to 24 outlets and their 40 mm ID hoses supplying the shoes. Each auger distributor has a brass gate valve which opens either manually or hydraulically from the cab for emptying fibrous material or objects from the trap, for example.

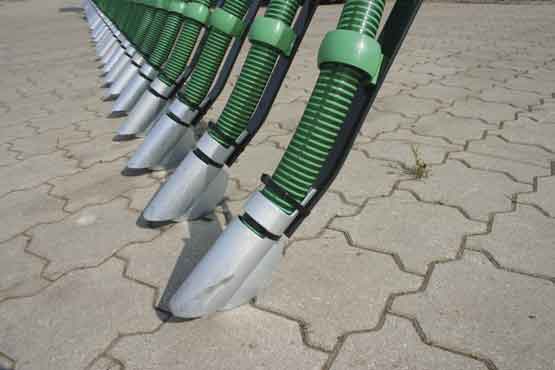

A FLIEGL SKATE trailing shoe applicator can take either the FLIEGL trailing shoes (figure 4), which

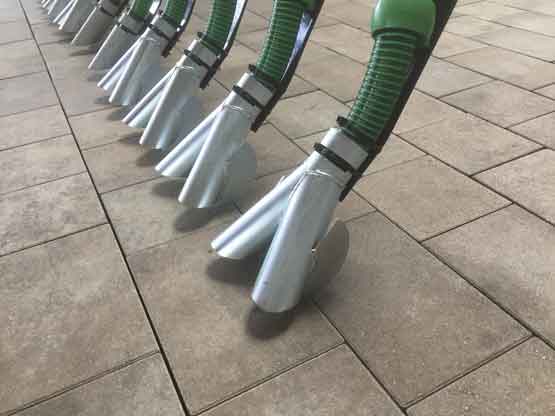

were fitted to the tested boom, or so-called Twin nozzles (figure 5). Figure 6 is an illustration of the FLIEGL auger distributor inside the boom.
The method
DLG test module “Functionality and quality of work”
Accuracy of cattle and pig slurry lateral distribution
The accuracy of cattle and pig slurry application across rows (lateral distribution) at two different rates on level ground is measured on the test stand to DIN EN 13406 standards. In this test, slurry is applied during a specified period of time and collected into trays that are placed under each outlet. These trays are weighed afterwards. These weighing results are used to determine the mean deviation (MD) and the coefficient of variation (CoV). The smaller these two parameters, the more accurate is the lateral distribution.
The mean deviation is assessed by applying the following DLG assessment scheme.
able 2: Assessment of lateral distribution
Mean deviation | DLG score |
---|---|
≤ 5 % | ++ |
≤ 10 % | + |
≤ 15 % | o |
Determining V patterns at application start
In this test, the testers time the seconds the unit takes until slurry is flowing through all outlets. The shorter this delay, the quicker the applicator achieves full-width spreading.
Slurry types applied in the test
The types of slurry that were used to carry out the test are characterised by dry matter content, ability to flow and density.
The dry matter content is determined gravimetrically in a lab. This is done by sampling the slurry as it is being applied in the test.
Its ability to flow is measured by means of a fluid meter. This is filled with slurry to a standardised volume. Then the fluid meter is emptied and the time this takes is measured.
This parameter is used for computing the ability to flow of the liquid.
The density is determined by taking multiple samples and filling these into a measuring cup. Then the density of each individual sample is determined by using the volume filled into the cup and the weight of this particular sample. These two parameters are used to compute the average density of the slurry.
DLG test module “Handling, ease of operation, service and maintenance”
In this test module, the following typical machine functions and repetitive service jobs are carried out by experienced operators. Each operation is timed with a stopwatch:
- Changing from transport into work position
- Changing from work into transport position
- Lubricating all grease points. The number and accessibility of grease points are noted down and the time required for servicing these is measured. The operator uses a grease can that is stored on the applicator next to the distributor. After all nipples are serviced, the can is put back and stored next to the distributor being tested.
- Emptying the traps: The test persons open the service unit and inspect the trap for fibrous or solid material. Then they close the service unit again as required.
All actions were carried out by several persons and the individual measurements were averaged. Each step and service job were described in terms of accessibility, ease of operation and tools required.
The test results in detail
The test was carried out with a 12 m FLIEGL SKATE 120 trailing shoe applicator with two FLIEGL auger distributors. The applicator has 48 shoes that are spaced at 25 cm and formed into spouts. Each of the two distributors has 24 outlets with 40 mm ID hoses. The boom was attached directly to the tank and required a 20-25 l/m oil flow. The tank was a 17.3 m³ two-axle tank of FLIEGL AGRARTECHNIK with a pto powered Armatec SPF 360 eccentric auger pump. The application rate was controlled by the pto speed.
The tank had a reduction gearbox which reduced the pto speed by 50 %.
The test tractor was a CLAAS ARION 530.
Lateral distribution applying cattle and pig slurry
The lateral distribution was measured on the test stand on level ground. Table 3 shows the results for both types of slurry and various application rates. The testers found that the deviations were very small ranging between 2.2 % and 3.4 %. All these results are “very good” (+ +) according to the DLG assessment scheme. The figures 9 to 12 show the results in cattle slurry and pig slurry and both application rates.
Table 3: Results on level ground – lateral distribution of cattle and pig slurry
Type of slurry | Pto speed | Pump speed | Flow rate | Application rate | Coefficient of variation | Mean deviation | Score* |
Cattle slurry | 740 rpm | 370 rpm | 4,100 l/min | 39.4 m³/ha at 5.2 km/h | 3.2 % | 2.3 % | + + |
Cattle slurry | 520 rpm | 260 rpm | 2,924 l/min | 18.3 m³/ha at 8.0 km/h | 2.7 % | 2.2 % | + + |
Pig slurry | 740 rpm | 370 rpm | 4,101 l/min | 39.4 m³/ha at 5.2 km/h | 4.4 % | 3.4 % | + + |
Pig slurry | 520 rpm | 260 rpm | 2,928 l/min | 18.3 m³/ha at 8.0 km/h | 4.3 % | 3.0 % | + + |
* Assessment scheme for mean deviation + + = ≤ 5%, + = ≤ 10 %, ¡ = ≤ 15 %
Performance at application start
Table 4 lists the number of seconds that passed before all distributor outlets were supplying slurry. The higher the flow rates the sooner did the liquid arrive at the outlets. On the whole, all outlets were supplied very fast, which means the full application width was attained very quickly (short V pattern). Table 5 shows details on the two types of slurry.
Table 4: Time (seconds) taken until slurry flows through all distributor outlets
Test | Seconds |
---|---|
Cattle slurry, 4,100 l/min | 1,7 |
Cattle slurry, 2,924 l/min | 2,3 |
Pig slurry, 4,101 l/min | 1,3 |
Pig slurry, 2,928 l/min | 1,5 |
Table 5: Cattle/pig slurry characteristics
Data | Cattle slurry | Pig slurry |
---|---|---|
DM content | 7,0 | 5,1 |
Ability to flow [s] | 6,9 | 6,6 |
Density [kg/dm3] | 0,97 | 0,99 |

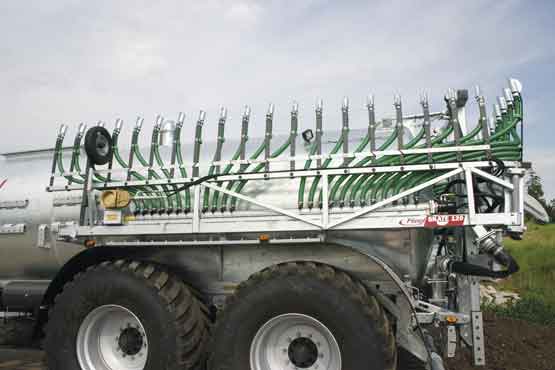

Changing from work into transport position
Moving the unit from work into transport position is also done from the cab-based ‘Easy’ comfort control unit (ISOBUS operation is an option).
As a first step, the booms fold to the vertical and then into the direction of travel.
After that they lower into the catch hooks. Like the unfolding rate, the folding rate is also restricted as required by safety regulations. The testers measured 28 seconds as the maximum.
Lubricating all grease points

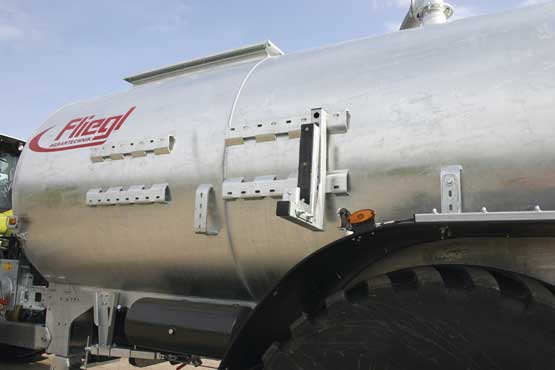

On the whole, there are four grease points that need to be attended on the FLIEGL SKATE 120 trailing shoe applicator. These are on the two transport catch hooks on both sides of the tank and on the two carrier brackets for the slope compensation.
All service points are greased with a brush. There are no grease nipples that would require a grease gun. All grease points are easily accessible and are serviced with the operator in a standing position and the boom in working position.
It took our testers 63 to 79 seconds to service all grease points.
Emptying the traps
There is a trap at the end of each auger distributor. The augers feed fibrous material that does not pass through the outlets to these traps. These have brass gate valves that opened hydraulically on the test machine for emptying the fibrous material.
The trap is serviced with the boom in headland position. Emptying the traps took 5 to 7 seconds on average after the operator triggered the function on the control unit.
Emptying the traps incl. visual checks from the ground
After operators open the two brass sliders on the traps by operating a button on the control unit, they dismount the tractor and give each trap a visual inspection. Then they remount the tractor and close the two sliders by pressing a button on the control unit.
This service job is carried out with the boom in headland position and took 36 to 40 seconds in the test.
Table 6: Operation and service times
Machine functions / servicing | Test person | Measured and averaged time | |||||
1 | 2 | 3 | 4 | 5 | |||
Changing from transport into work position | [s] | 26 | 26 | 26 | 26 | 26 | 26 |
Changing from work into transport position | [s] | 28 | 28 | 28 | 28 | 28 | 28 |
Servicing all four grease points | [s] | 66 | 63 | 79 | 65 | 75 | 70 |
Emptying the traps | [s] | 7 | 5 | 5 | 5 | 7 | 6 |
Emptying the traps incl. visual inspection from the ground | [s] | 36 | 36 | 38 | 38 | 40 | 38 |
Applying cattle and pig slurry, the FLIEGL SKATE 120 trailing shoe applicator (with two FLIEGL auger distributors) demonstrated excellent distribution qualities in the test. The averaged deviations that describe the quality of distribution were less than 5 % in all four test runs, which means that all test results were assessed as “very good” (+ +). The time measurements show that there is only a very short delay until slurry flows through all distributor outlets. As such, the applicator achieves its full working width very quickly after spreading has started.
The FLIEGL SKATE 120 trailing shoe applicator (with auger distributors) also produces convincing results in the DLG test module “Handling, ease of operation, service and maintenance”. Access to all service points is excellent and most services are carried out in an upright position. The various operations are straightforward and require no specialist tools.
Based on these test results, the FLIEGL SKATE 120 trailing shoe applicator (with auger distributors) is awarded the DLG APPROVED quality mark in the test modules “Functionality and quality of work” and “Handling, ease of operation, service and maintenance”.
Manufacturer and applicant
FLIEGL Agrartechnik GmbH
Bürgermeister-Boch-Straße 1
84453 Mühldorf am Inn
Test implementation
DLG TestService GmbH,
Gross-Umstadt location, Germany
The tests are conducted on behalf of DLG e.V.
DLG test framework
Slurry applicators (dated 05/2018)
Department
Agriculture
Division head
Dr. Ulrich Rubenschuh*
Test engineer(s)
Dipl.-Ing agr. Georg Horst Schuchmann*
The DLG panel of experts
Prof. Hans W. Griepentrog, University of Hohenheim
Prof. Nils Fölster, University of Osnabrück
Dr. Harm Drücker, Chamber of Agriculture of Lower Saxony
Dr. Horst Cielejewski, Chamber of Agriculture of North Rhine-Westphalia
Dr. Fabian Lichti, State Institute of Agriculture Bavaria
Peter Seeger (farmer), Otzberg
Frank Reith (farmer), Groß-Umstadt
Sven Schneider (farmer and contractor), Brensbach
